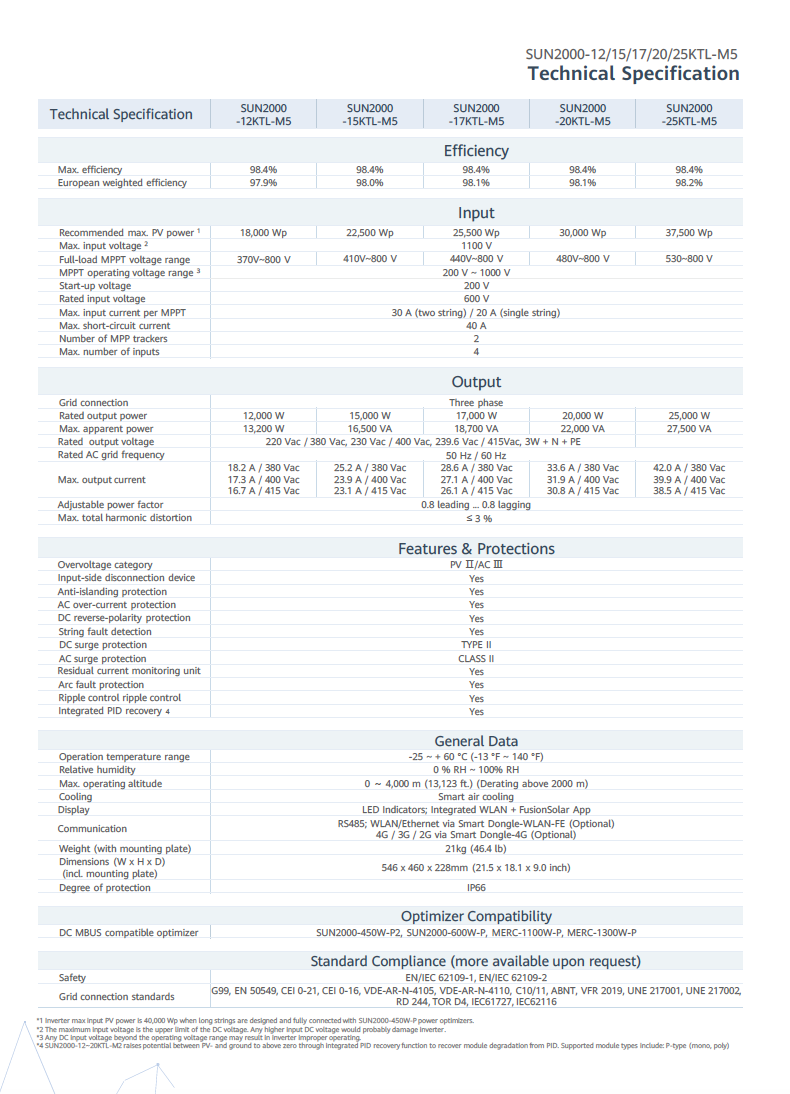

Description

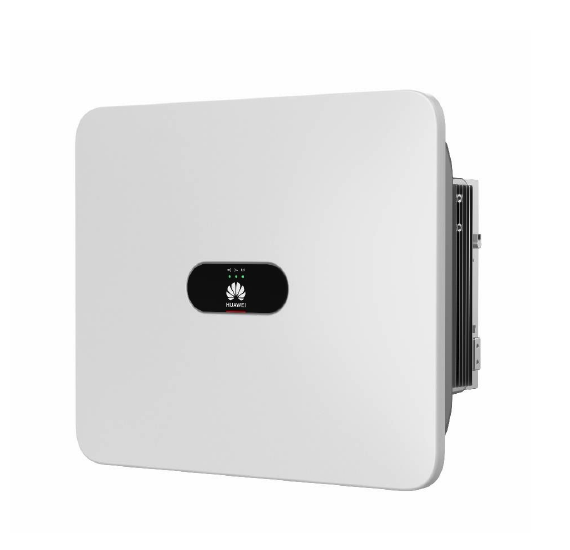

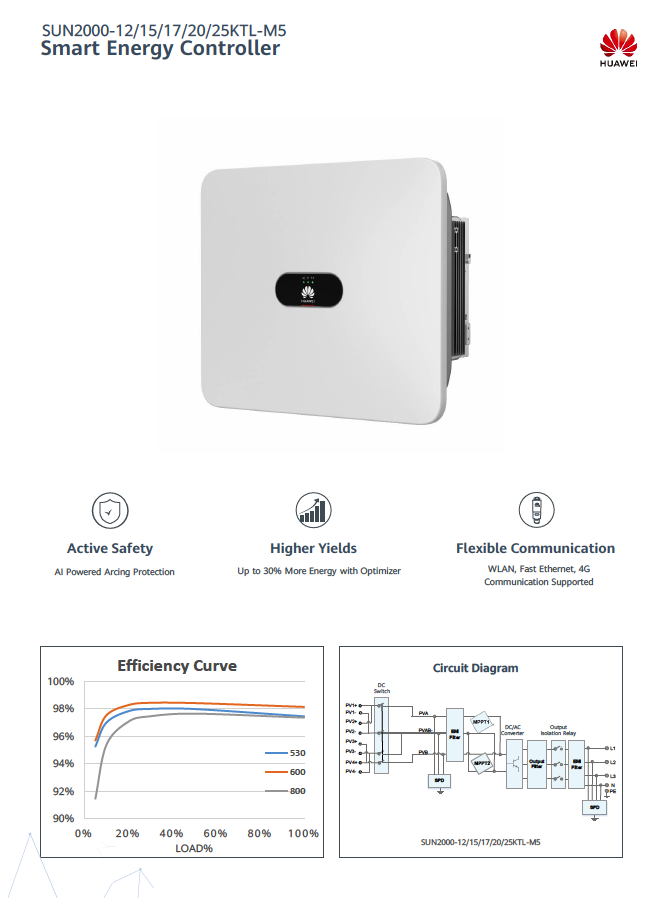

• Category: Smart PV Controller
• Max Efficiency: 98.4%
• European Efficiency: 97.9% to 98.2%
• Input:
• Max PV Power: 18,000 Wp to 37,500 Wp
• Max Input Voltage: 1100 V
• MPPT Voltage Range: 200 V to 1000 V
• Start-up Voltage: 200 V
• Rated Input Voltage: 600 V
• Max Current per MPPT: 30 A
• Output:
• Grid Connection: Three-phase
• Rated Power: 12,000 W to 25,000 W
• Max Apparent Power: 13,200 VA to 27,500 VA
• Rated Voltage: 220-415 Vac
• Max Output Current: 18.2 A to 42.0 A
• Power Factor: Adjustable (0.8 leading to 0.8 lagging)
• Protection:
• Overvoltage, Anti-islanding, Reverse Polarity, Surge Arresters (Type II)
• Arc Fault Protection, PID Recovery, etc.
• General Data:
• Dimensions: 546 x 460 x 228 mm
• Weight: 21 kg
• Degree of Protection: IP66
