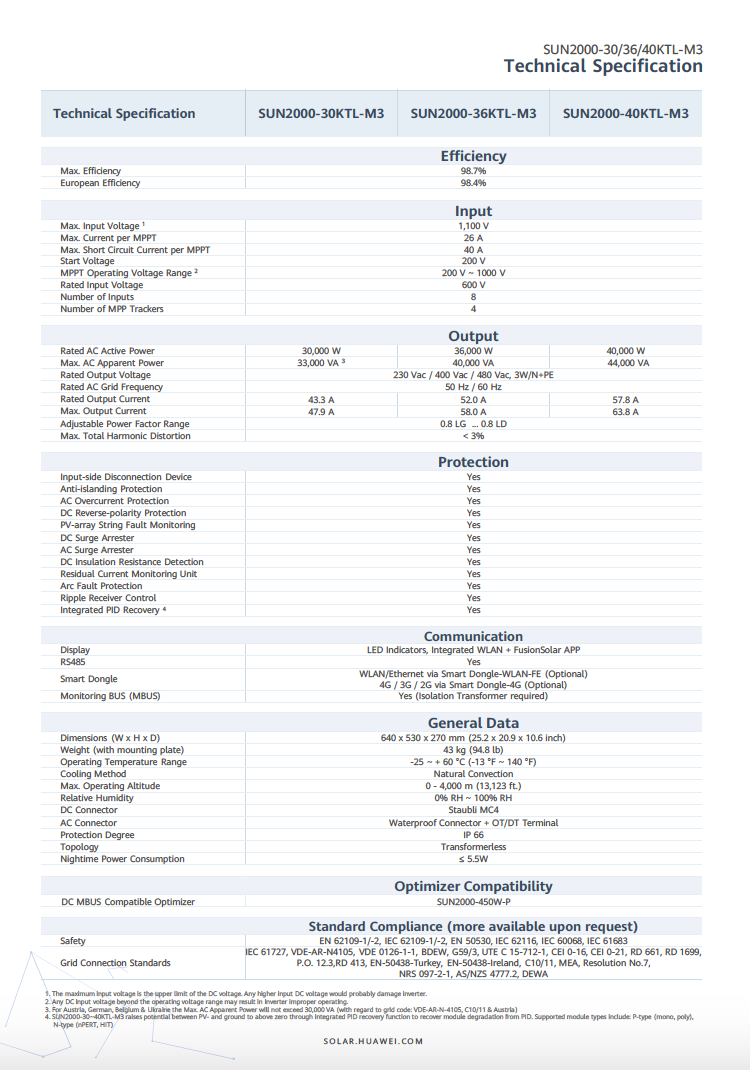

Description

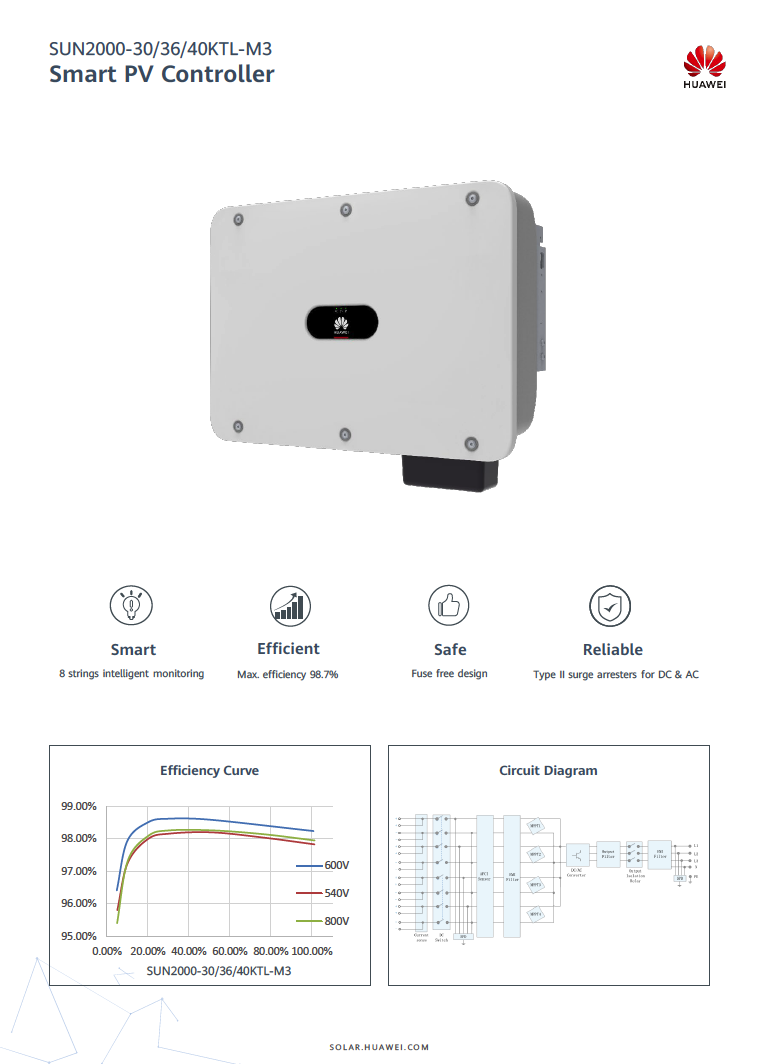

Category: Smart PV Controller
• Max Efficiency: 98.7%
• European Efficiency: 98.4%
• Input:
• Max Input Voltage: 1100 V
• Max Current per MPPT: 27 A
• Number of MPP Trackers: 4
• Max Short Circuit Current: 40 A
• Output:
• Rated Power: 30,000 W to 40,000 W
• Max Apparent Power: 33,000 VA to 44,000 VA
• Rated Voltage: 230-480 Vac
• Max Output Current: 47.9 A to 63.8 A
• Harmonic Distortion: < 3%
• General Data:
• Dimensions: 640 x 530 x 270 mm
• Weight: 43 kg
• Protection Degree: IP66
